Age: 4 days (born at 24 weeks)

Sex: Male

Indication: Evaluate for germinal matrix hemorrhage

Save ("V")

Case #1


Findings

  • Echogenic material in the left caudothalamic groove and layering in the occipital horn of the left lateral ventricle
  • No ventriculomegaly
  • No abnormal brain parenchymal echogenicity or extra-axial collections
  • Premature sulcation pattern


Diagnosis

Grade 2 germinal matrix hemorrhage

Sample Report

Left germinal matrix hemorrhage involving the caudothalamic groove and layering in the occipital horn of the left lateral ventricle without hydrocephalus (grade 2).

No abnormal brain parenchymal echogenicity or extra-axial collections.

Premature sulcation pattern.


Discussion

  • The germinal matrix is a highly vascularized subependymal structure that is at risk for bleeding as a result of perinatal stress
  • The germinal matrix regresses in the third trimester. It is confined to the caudothalamic groove by 32 weeks and essentially gone by 36 weeks – therefore, the risk for germinal matrix hemorrhage is essentially zero in infants born after 36 weeks and conversely greatly increased in infants born at less than 32 weeks postmenstrual age
  • Because symptoms may not be revealing, screening neurosonography is recommended in infants born at less than 30 weeks postmenstrual age
  • When looking for germinal matrix hemorrhage, remember that the choroid plexus (which is unfortunately echogenic, similar to hemorrhage) should not extend anterior to the caudothalamic groove, so echogenic material in the frontal horns is likely hemorrhage
  • Here are the 4 grades of germinal matrix hemorrhage:



Germinal Matrix Hemorrhage

Grade Hemorrhage location Hydrocephalus
1 Confined to caudothalamic groove Absent
2 Intraventricular hemorrhage Absent
3 Intraventricular hemorrhage Present
4 Intraparenchymal hemorrhage Absent/Present



  • Hydrocephalus – here are some approximate normal measurement standards on ultrasound (from Brouwer et al.). Examples of these measurements are demonstrated in the annotated images below
    • Ventricular index (distance from the lateral wall of the frontal horn to the falx measured in the coronal plane) < 10 mm at 25-30 weeks and < 15 mm at 40 weeks
    • Anterior horn width (greatest diagonal width of the frontal horn measured in the coronal plane) < 3 mm at 25-30 weeks and < 4 mm at 40 weeks
    • Thalamo-occipital distance (distance from the posterior margin of the thalamus to the posterior margin of the occipital horn measured in the parasagittal plane) < 20 mm at 25-30 weeks and < 25 mm at 40 weeks



  • As the brain matures, sulci become deeper and more numerous
  • Recognizing normal sulcation patterns for patient age can be useful in early diagnosis of disorders of cortical development like lissencephaly
  • Large sulci/fissures become apparent early in development (e.g. the sylvian fissures and parietooccipital sulci) while smaller sulci may not become apparent by ultrasound until late in the third trimester

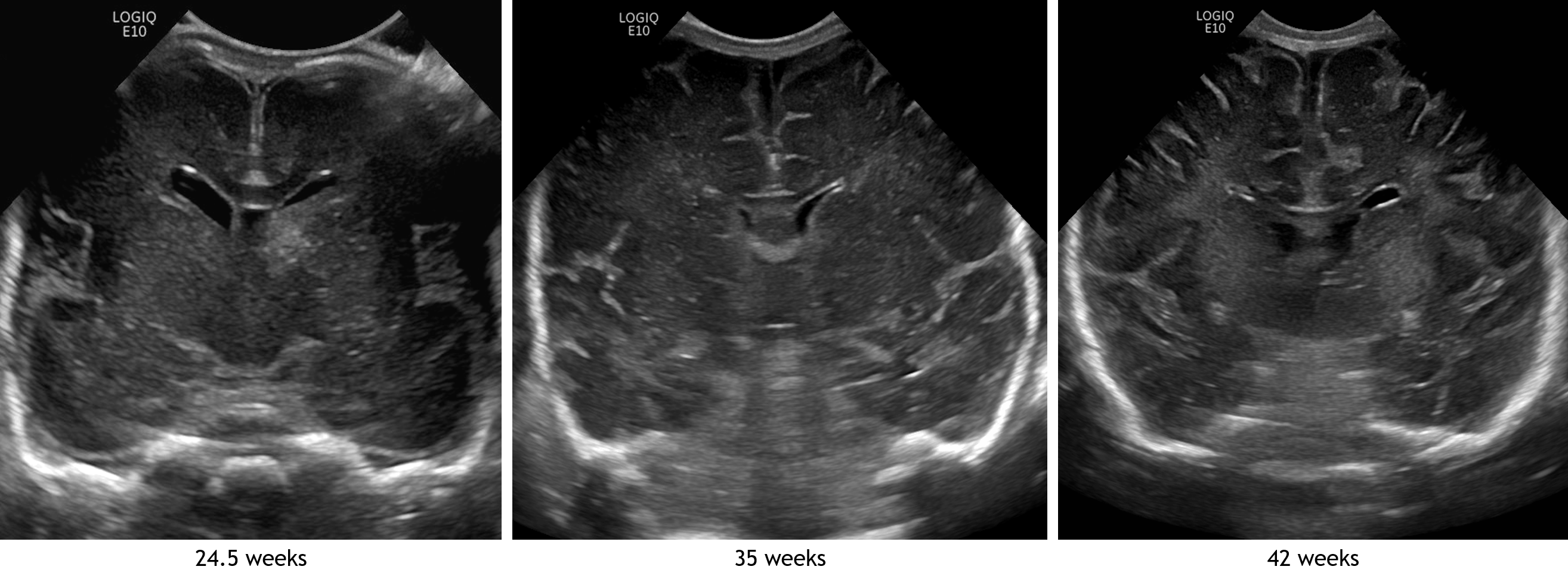

  • Refer to the annotated image below to see the differences in sulcation between this patient and patients imaged at 35 and 42 weeks postmenstrual age


Images

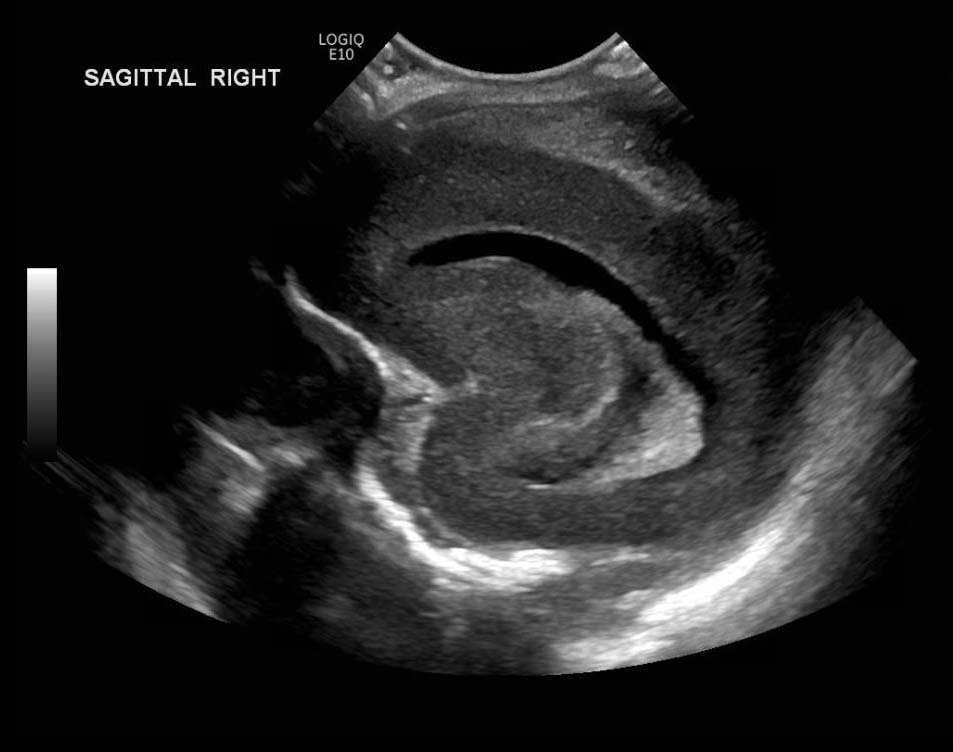

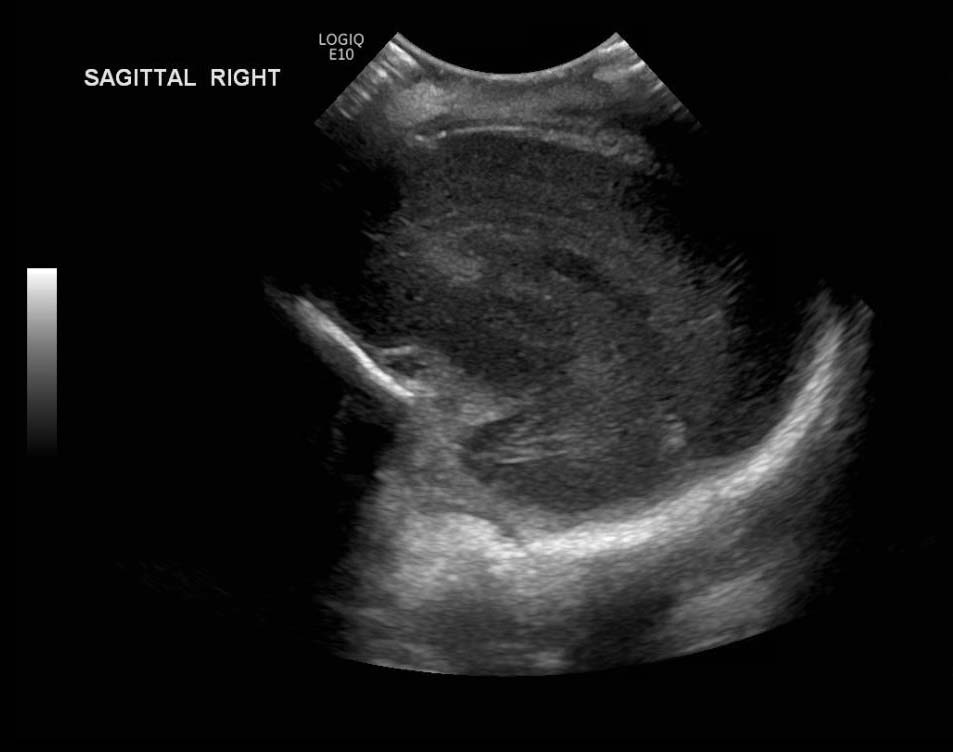

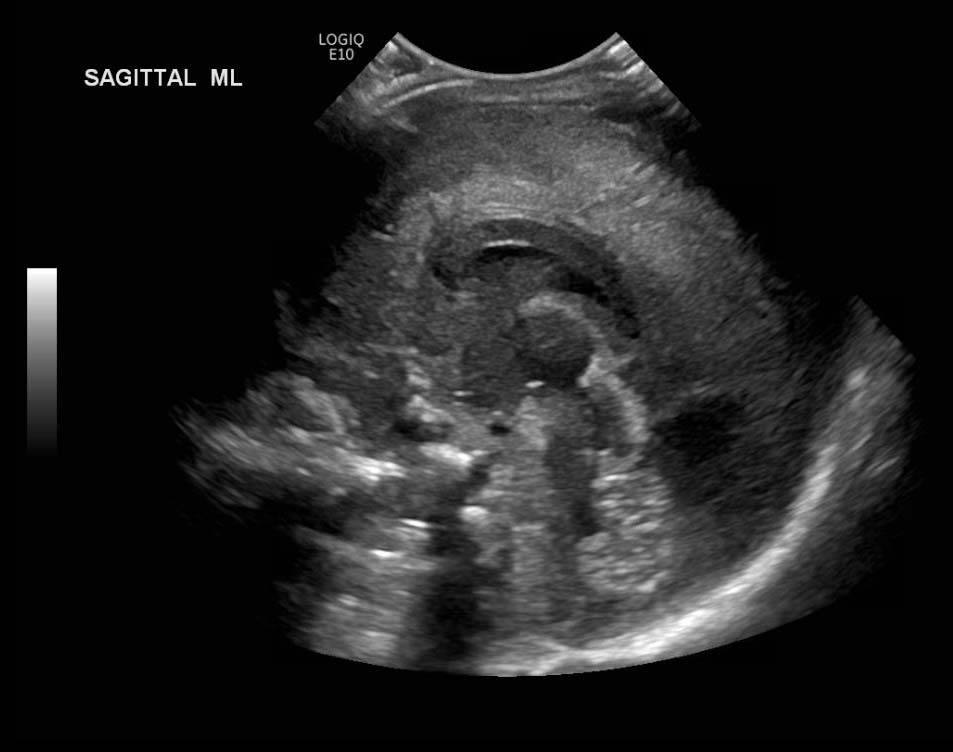

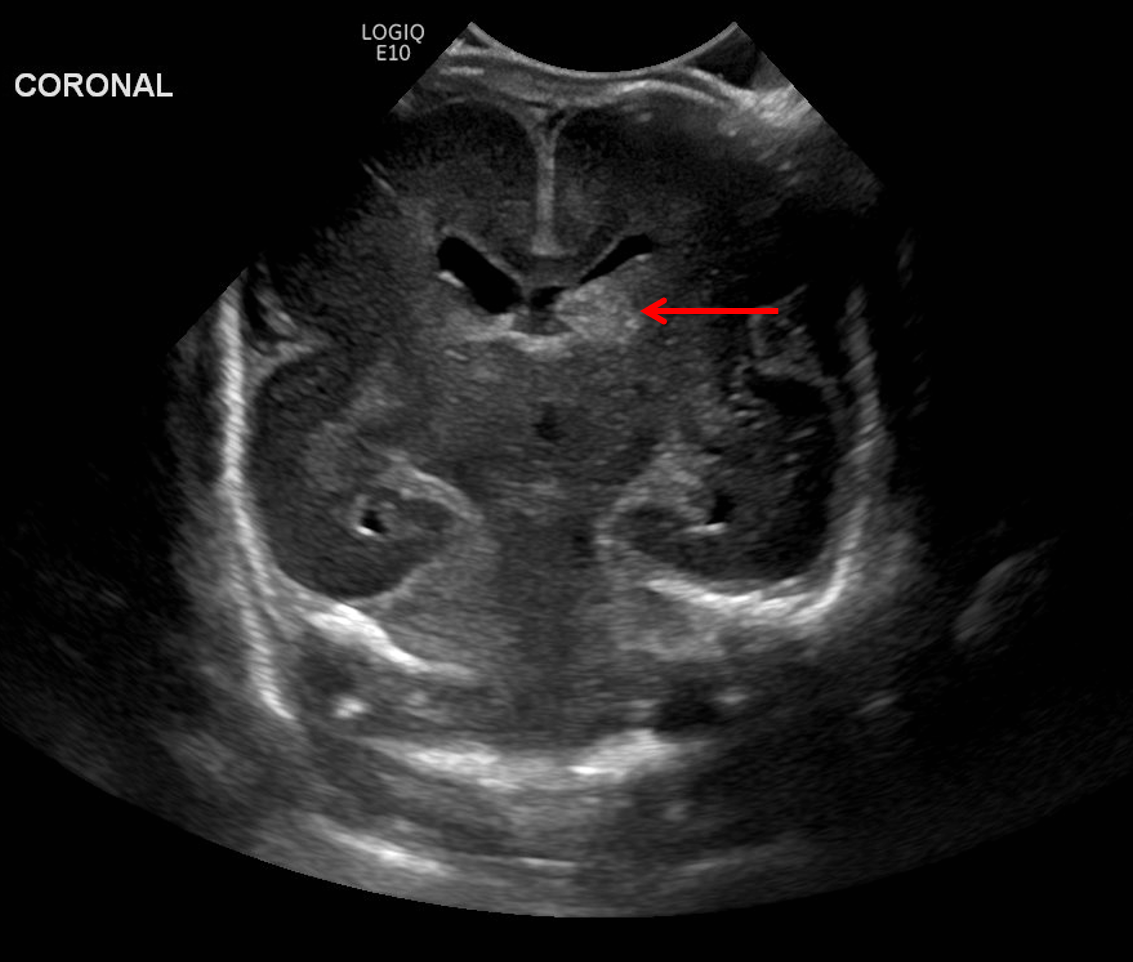

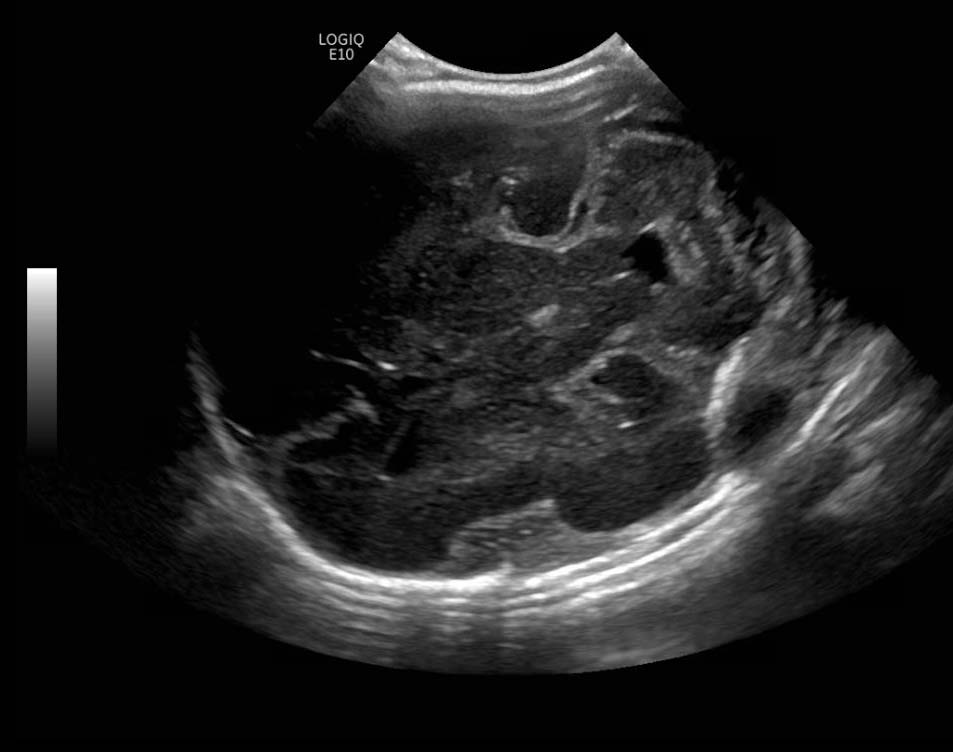

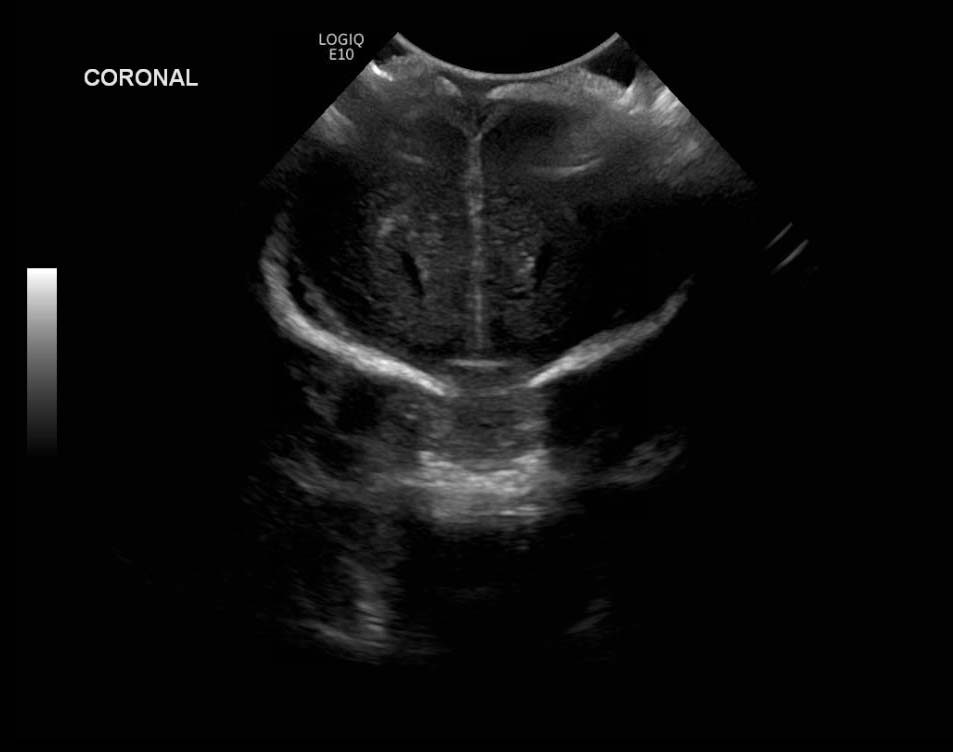

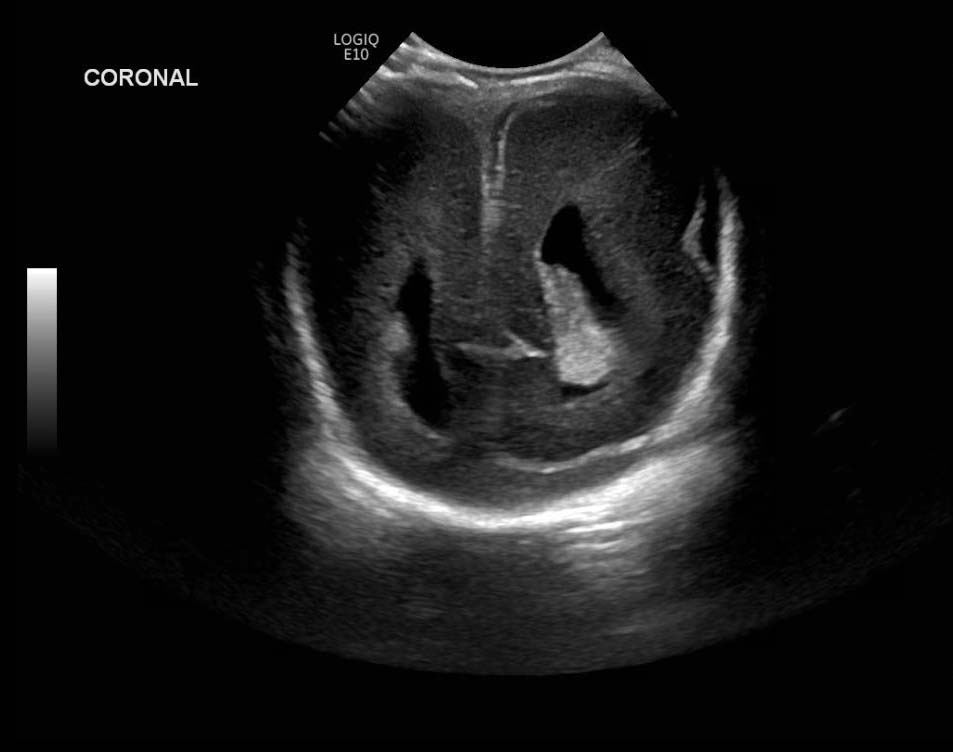

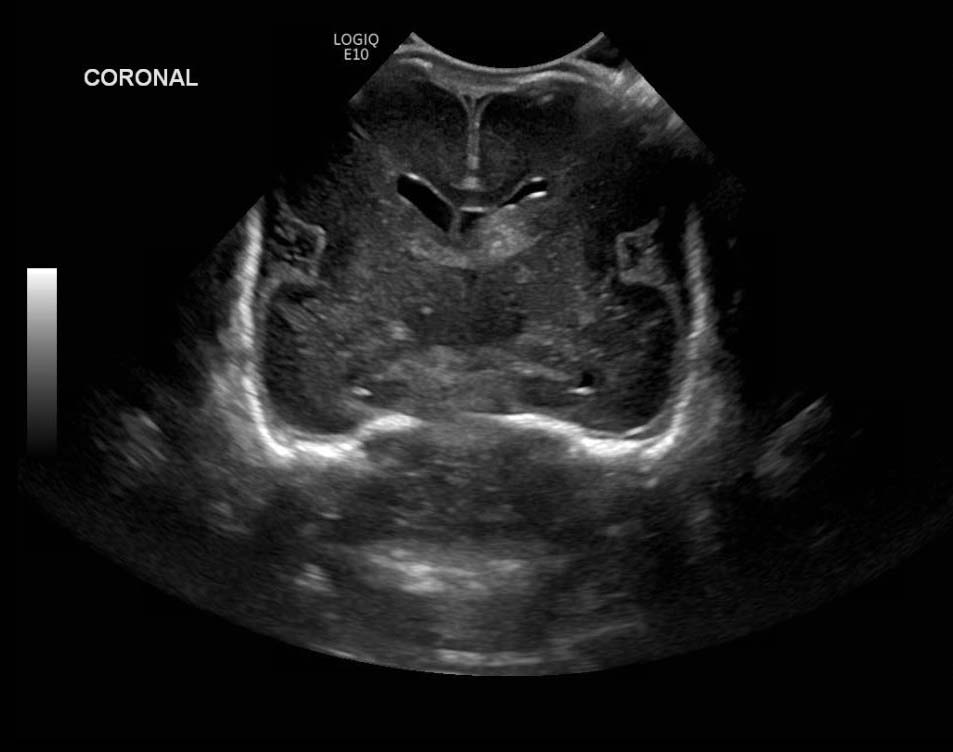

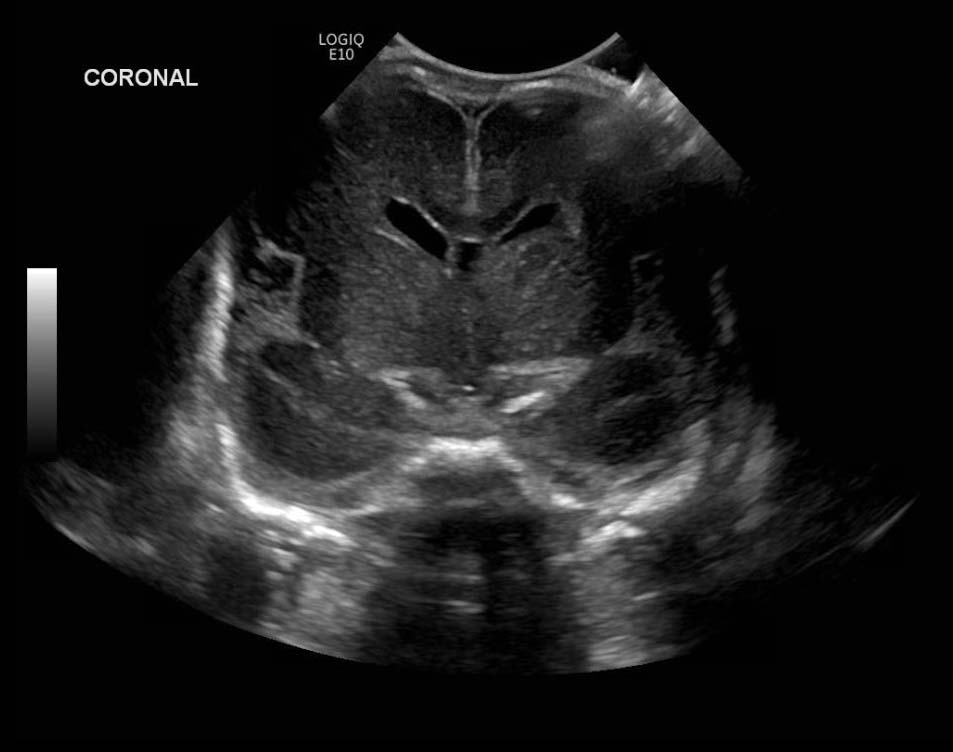

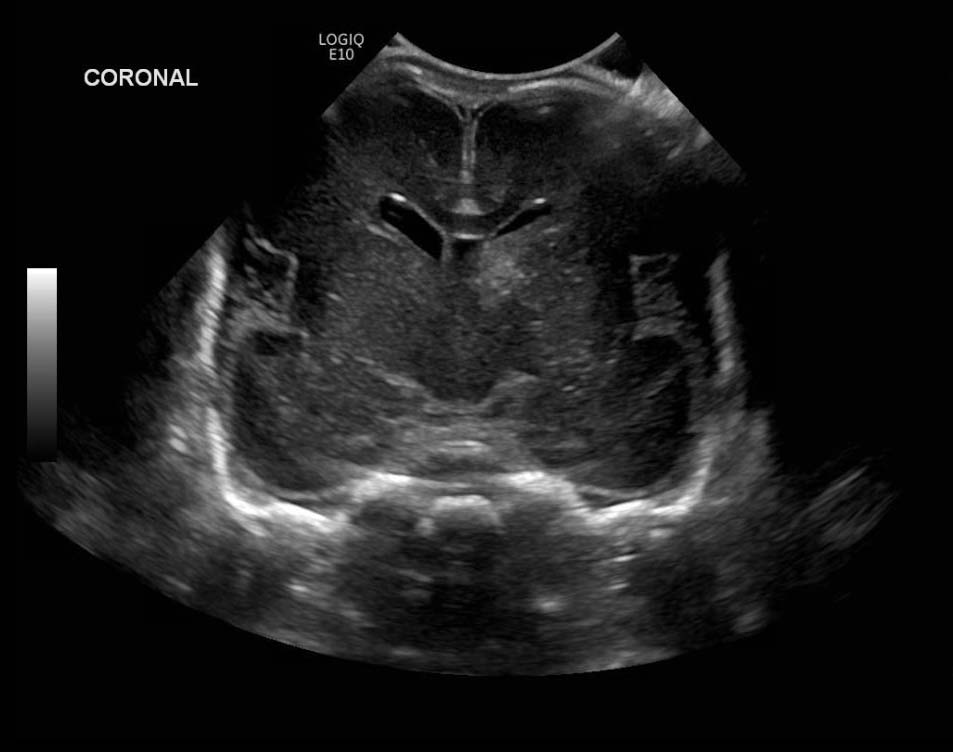

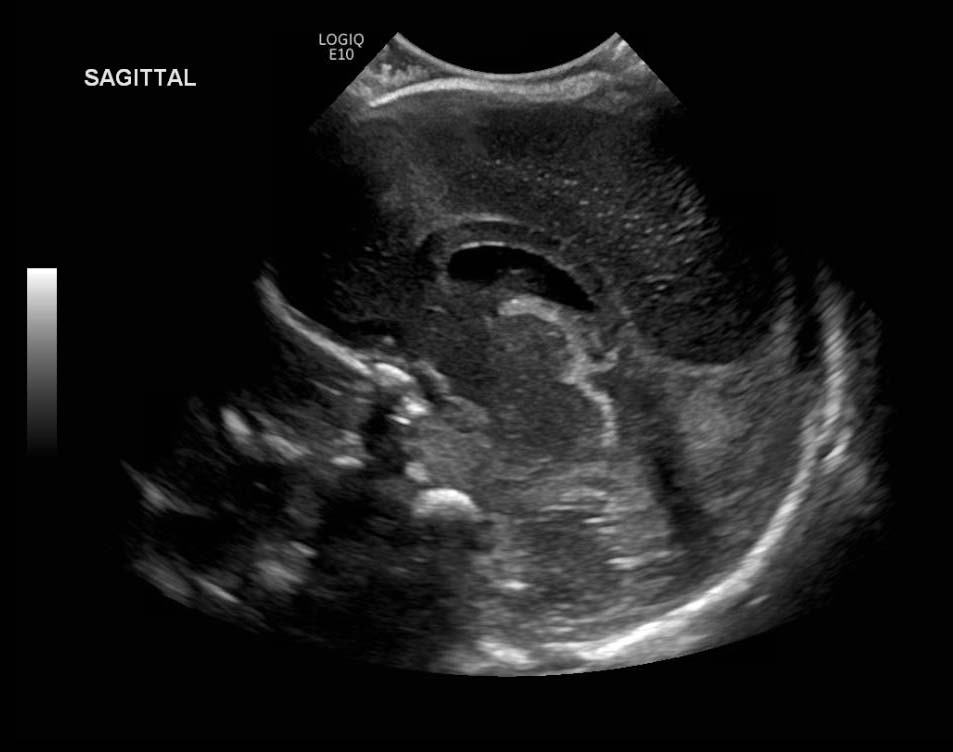

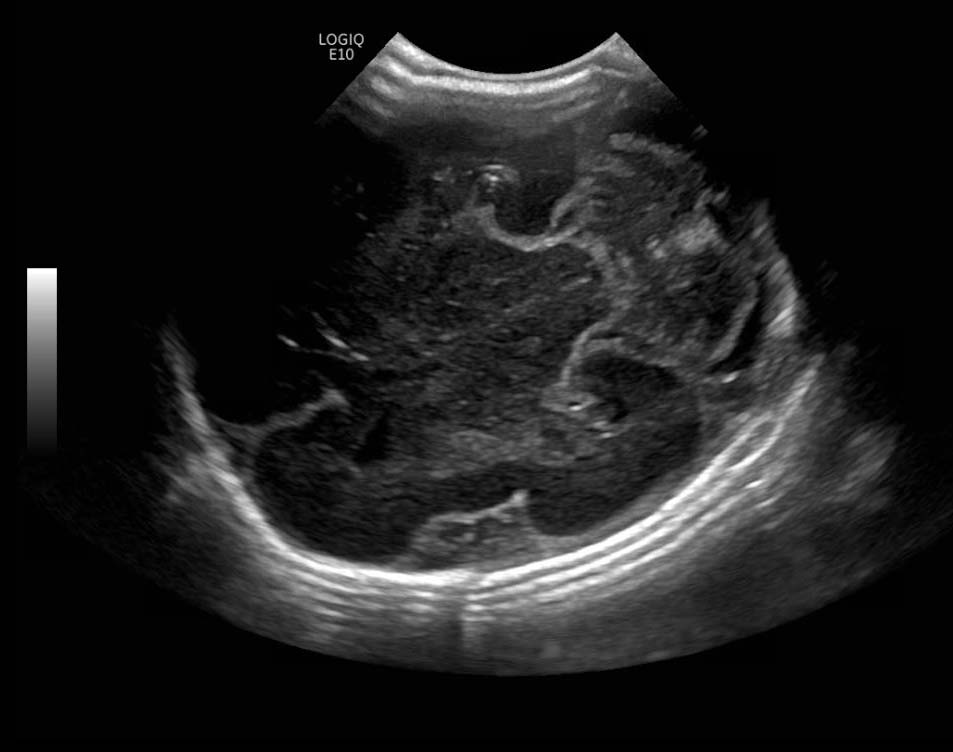

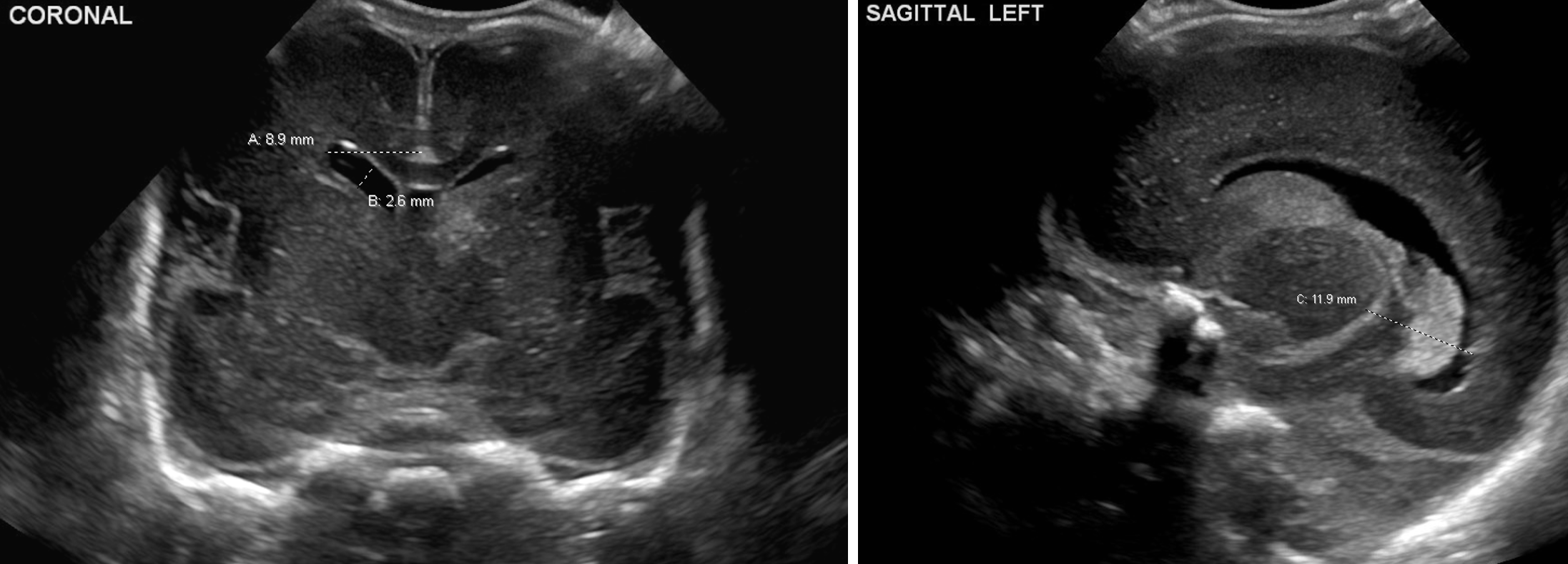

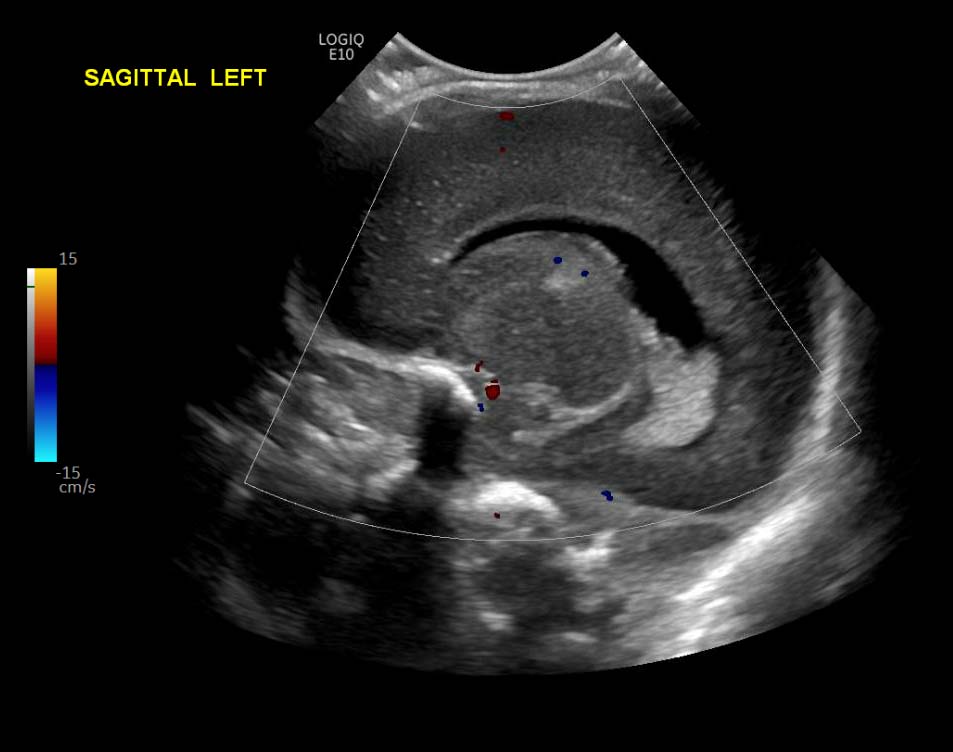

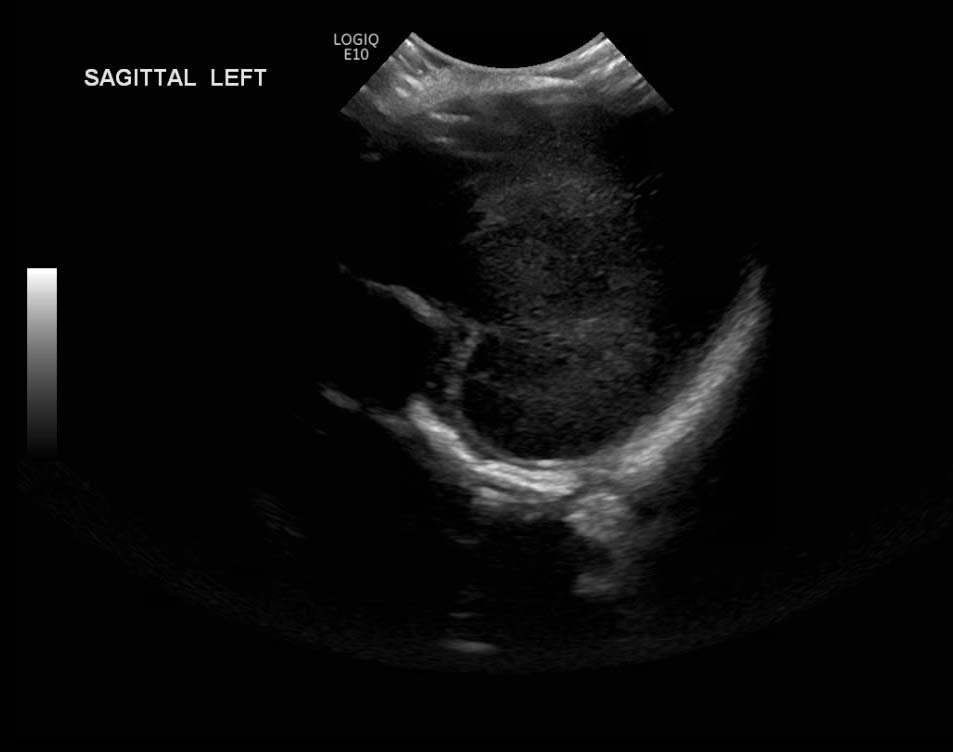

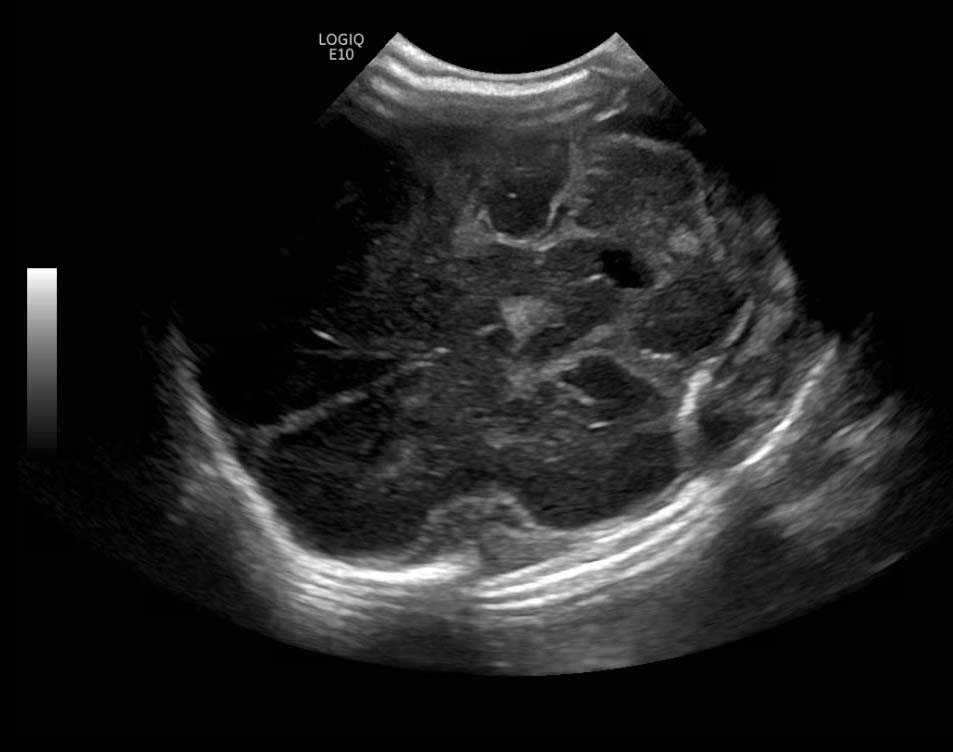

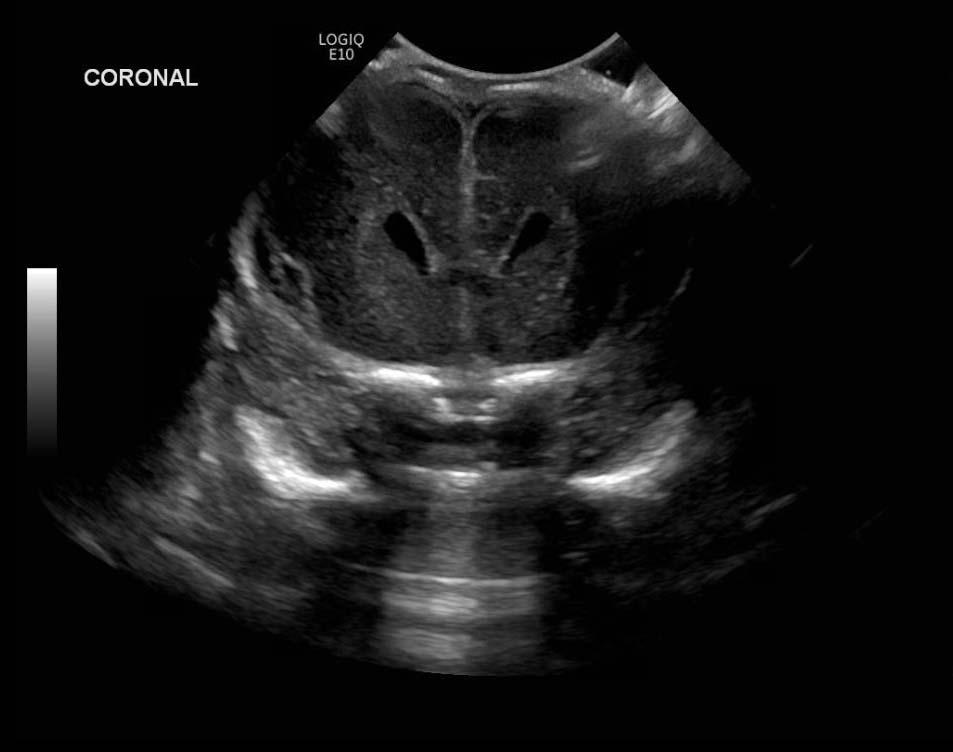

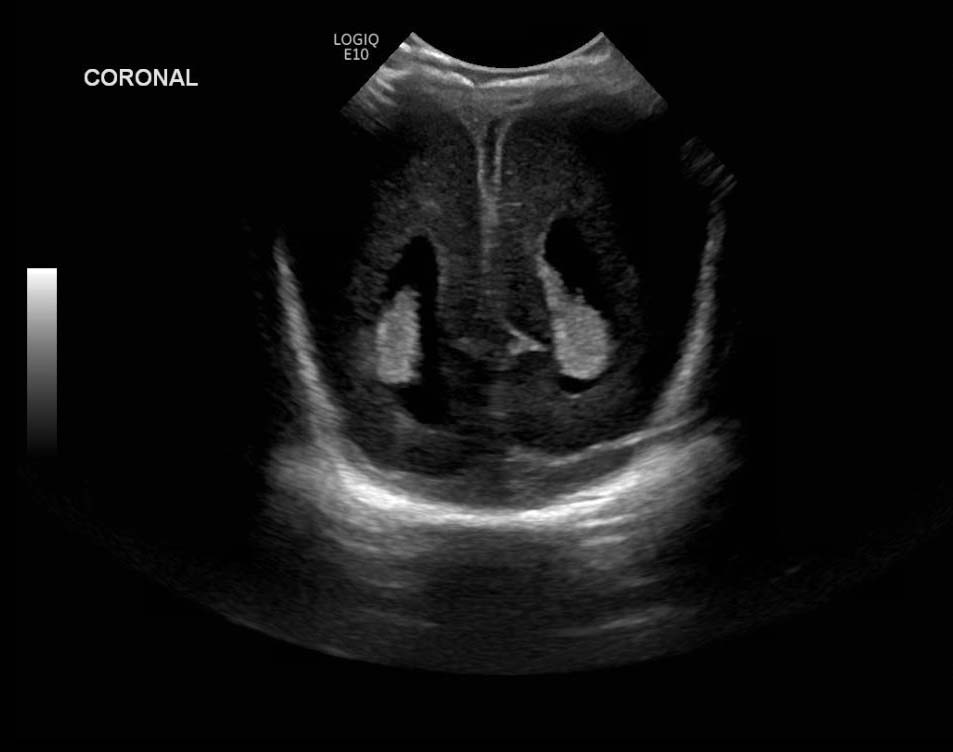

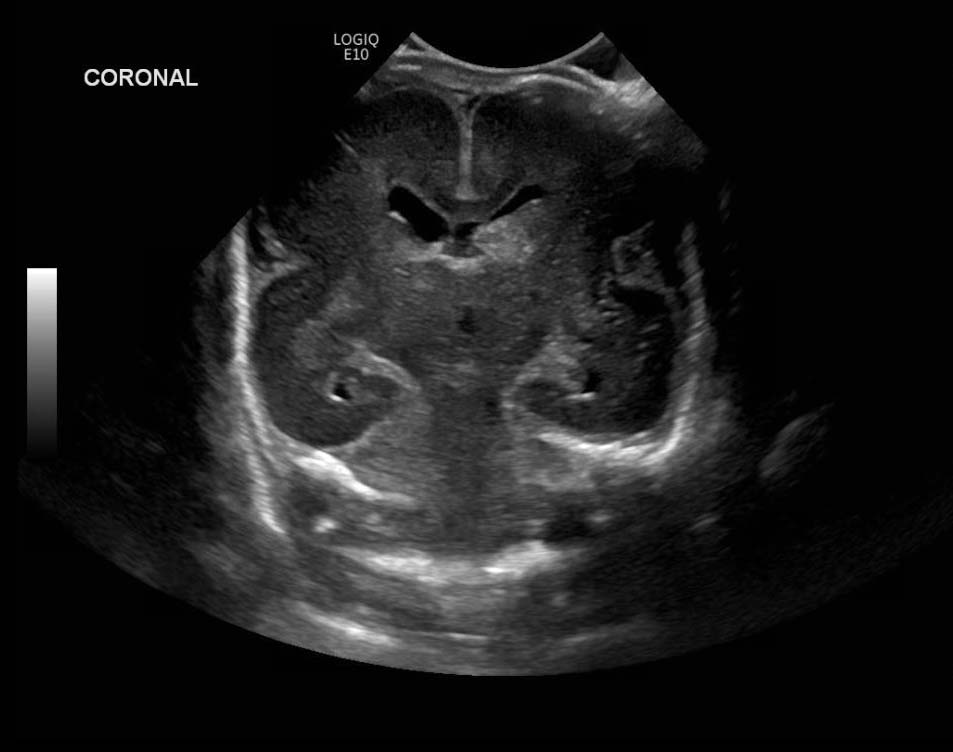

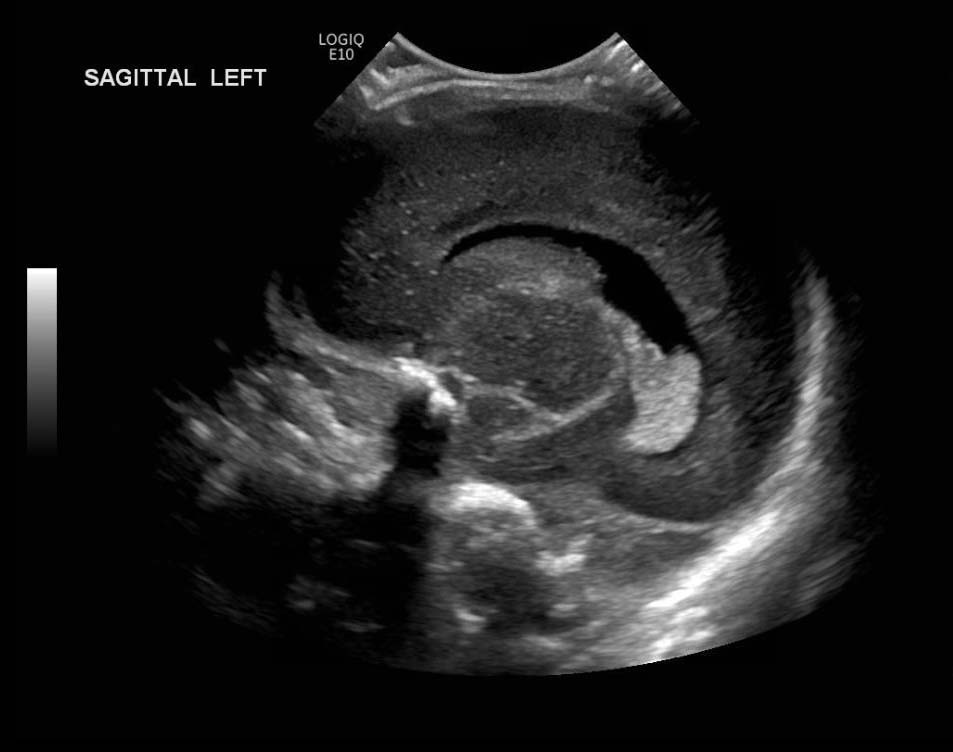

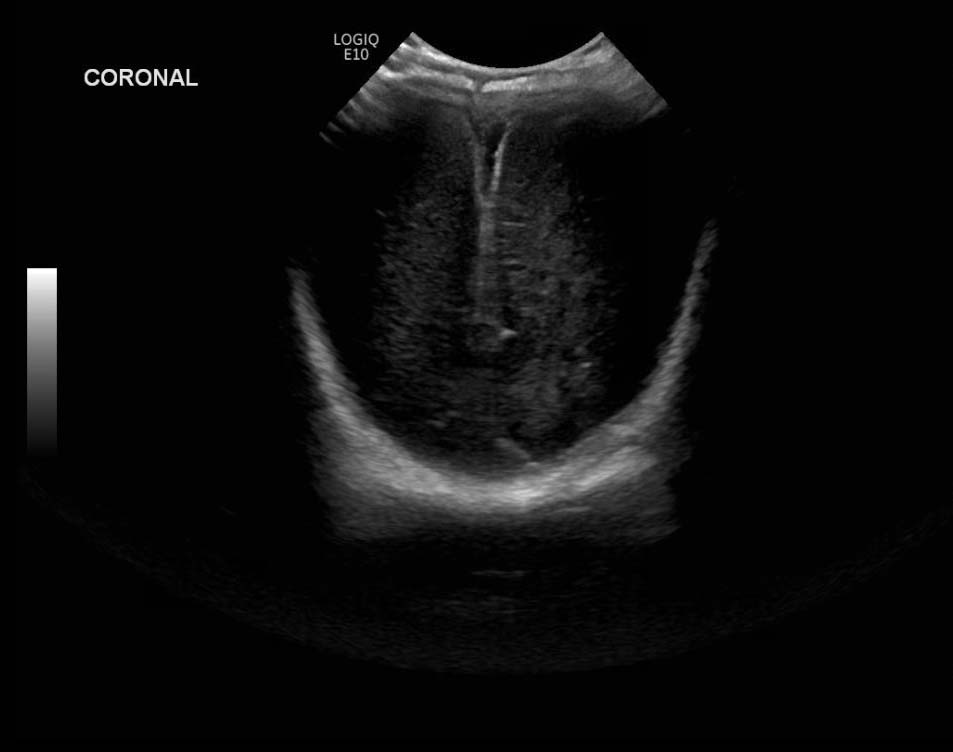

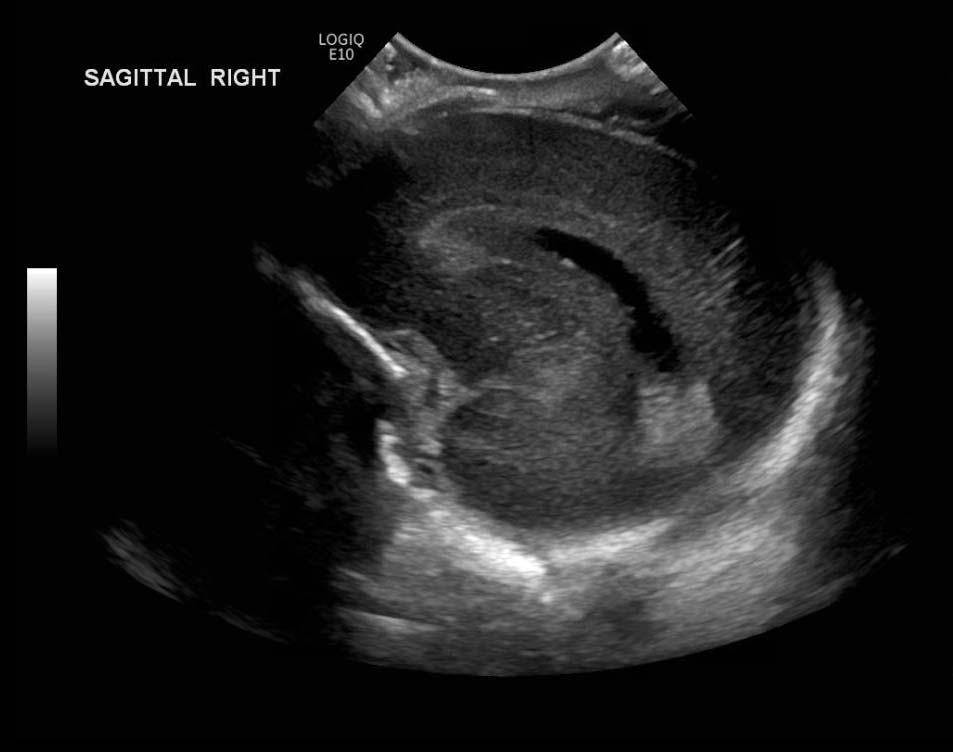

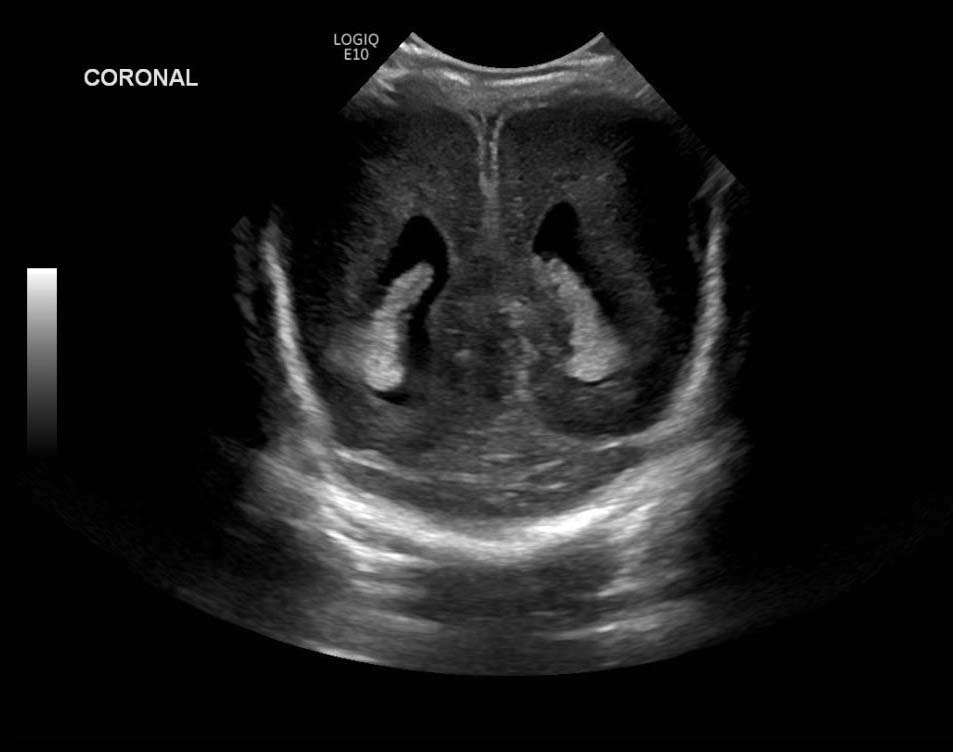

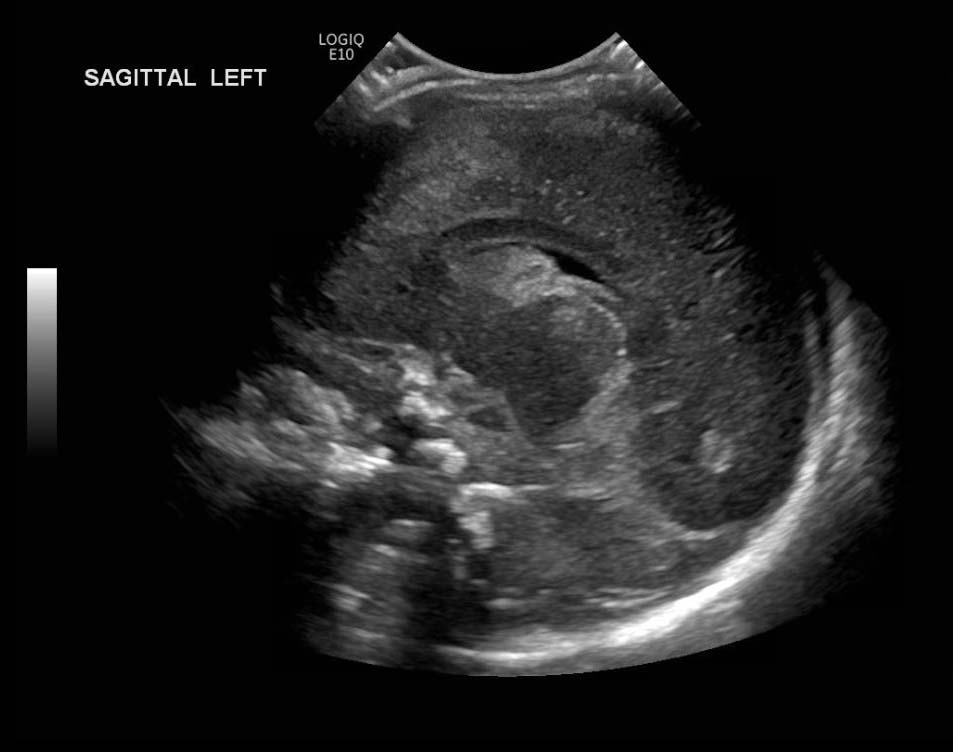

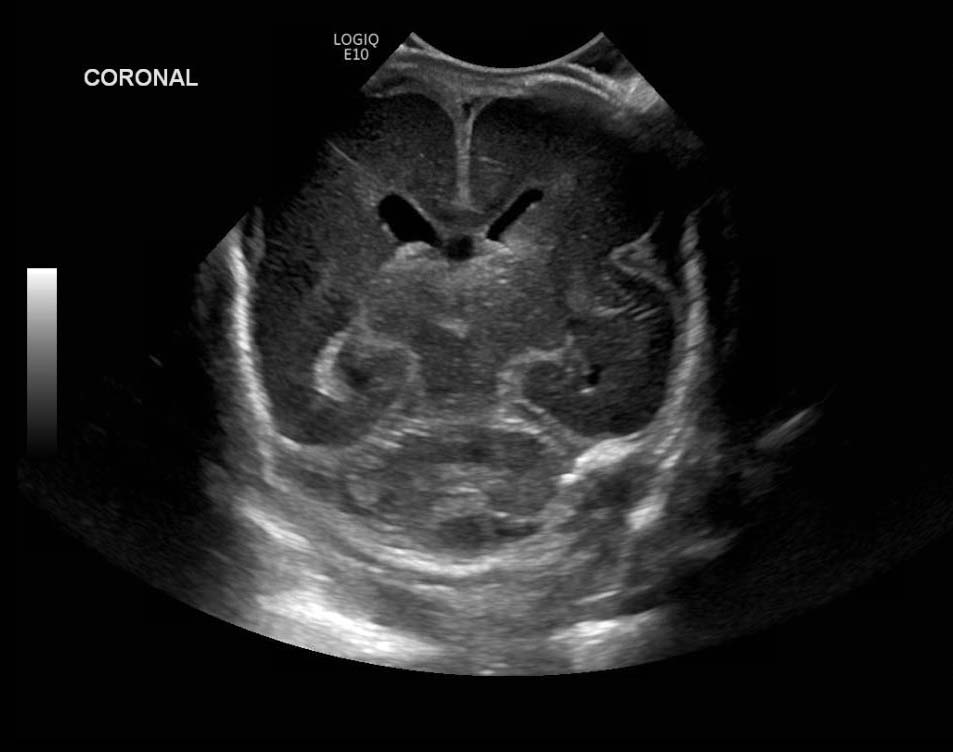

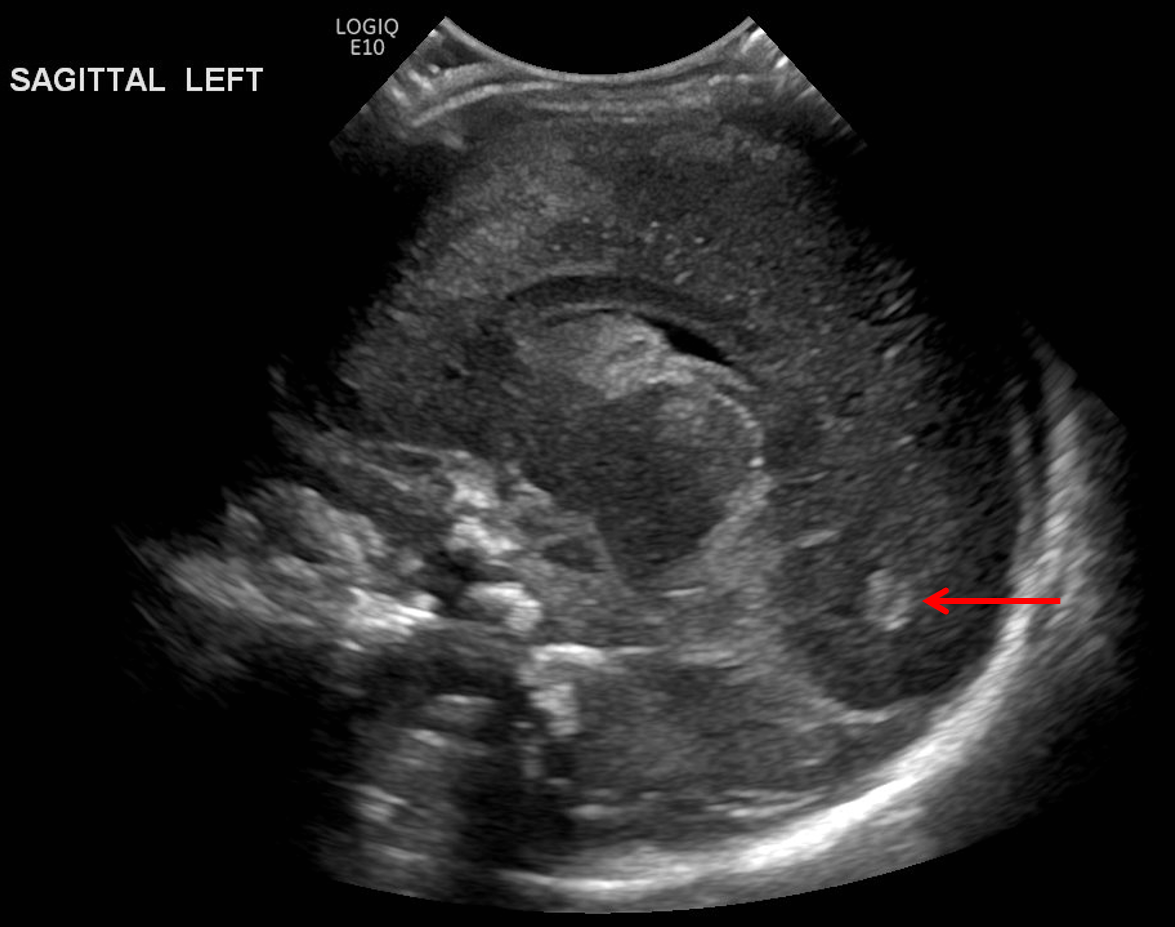

Rounded echogenic area in the left caudothalamic groove (red arrow) consistent with germinal matrix hemorrhage. Echogenic material layering in the occipital horn of the left lateral ventricle (red arrow) consistent with intraventricular hemorrhage. Example measurements of the ventricular index (A), anterior horn width (B), and thalamo-occipital distance (C). Coronal image in this patient compared with images from different patients imaged at 35 and 42 weeks. Notice how the echogenic sulci become deeper and more numerous with increasing patient age.
